Part No. 4AT-1000
Features:
Run 6-sided parts in 2 operations
Ability to clamp parts up to 10.3 inches long
Cut down set up time
Integral back jaw and attachment plate for more rigidity
Attach fixtures to main base
Use as you would use a compound sine plate {2 way inclination) for difficult set ups
No need for sine or angle plates
Surface ground steel
Side Holes for additional set-ups or stops with location counter bores
Made in the USA
Entire assembly (everything in image above except 4th Axis unit) $5312.50
Includes:
Trunnion (18' long x 6" wide x 2" thick / part # 4AT-1800) sold separately with 6" support $3500.00
End Support (6" on center of bushing / part # ES-600) sold separately $695.00
2 Modular Vise (MV-600) sold separately $1031..25 each
2 Sets of DURUS Grip Strip Jaws (GS-600) sold separately $287.50 each set
All Hardware
Optional Equipment
4AT-LV600 (long vises sold separately)
$1206.25 (each)
Optional Equipment

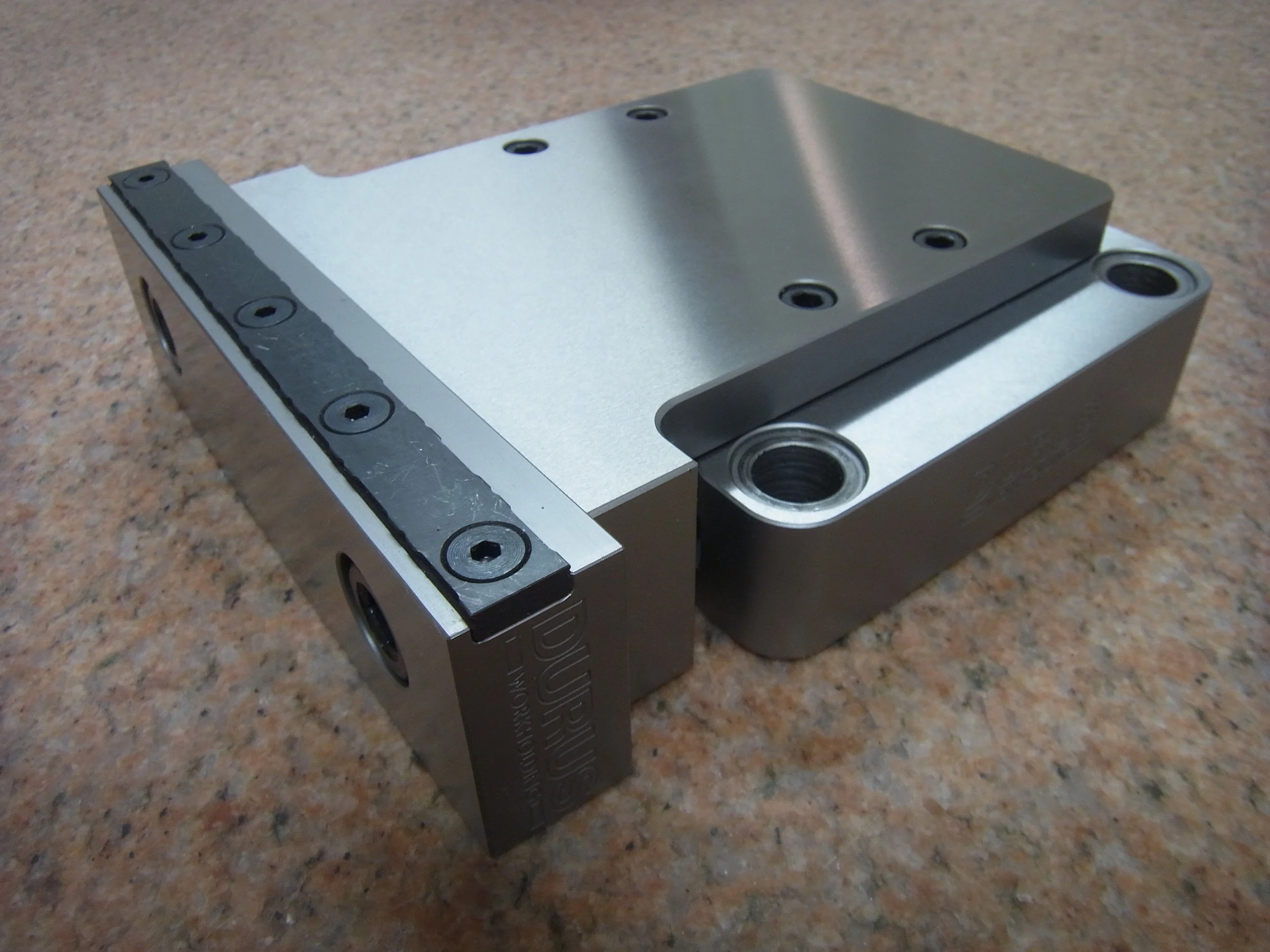

MV-600 (Modular Vise)
If sold separately $1031.25 (each) shown with optional equipment GS-600 (jaw set)
More images of DURUS 4th - Axis Trunnion (click on image to see more)
